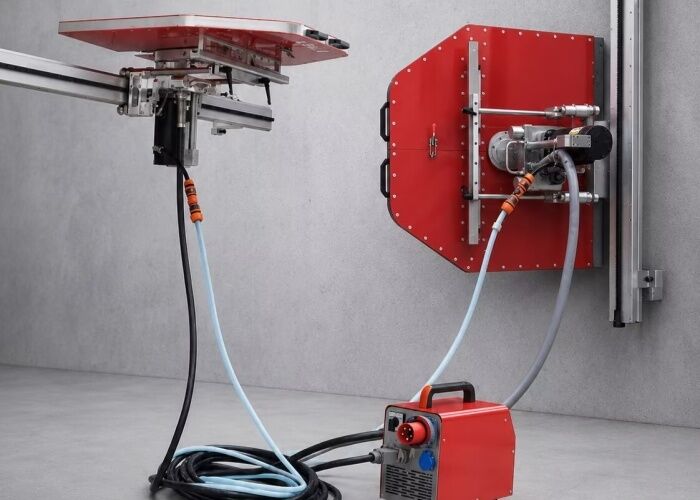

Advanced Wall Saw Machine With Remote Intelligient Control And Automatic Feed System

Advanced Wall Saw Machine With Remote Intelligient Control And Automatic Feed System

Introduction For Advanced Wall Saw Machine With Remote Intelligient Control And Automatic Feed System

This smart wall saw realizes real-time monitoring on current and torque via load detection system. It will slow down or shut down automatically under overload status. The intelligent protection mechanism extends the service life of core parts and ensures continuous and safe cutting for engineering projects.

Data Sheet For Advanced Wall Saw Machine With Remote Intelligient Control And Automatic Feed System

Product Features:

1. High Cutting Efficiency and Depth

2. High Precision and Smooth Cuts

3. Static Cutting: Low Noise, Low Vibration, and Eco-Friendly

4. Lightweight, Flexible, and Highly Adaptable

5. Stable Continuous Operation and Long Service Life

6. Intelligent Remote Control and Effortless Operation

Safety Features:

1. Electrical Safety

Leakage Protection (Core Feature): One-touch emergency shutdown in the event of current leakage or operational anomalies. The fully sealed design ensures high water resistance, making the unit suitable for complex working environments involving moisture, dust, and other challenging conditions.

Overcurrent / Overload Protection: Automatically cuts off power or reduces operating speed when current levels become abnormal, preventing motor burnout.

Phase Loss / Undervoltage Protection: Automatically shuts down the unit in the event of a missing phase in the three-phase power supply or unstable voltage conditions.

Waterproof & Insulated Design: The motor and electrical control box feature a high ingress protection (IP) rating, making them fully compatible with water-cooled cutting operations.

2. Mechanical & Overload Protection

Full Saw Blade Guard: Covers the non-cutting areas of the blade to prevent accidental contact and protect against flying debris.

Anti-Kickback / Anti-Jamming: An intelligent control system adjusts the feed rate in milliseconds to minimize the risk of the saw blade jamming or kicking back.

Emergency Stop (E-Stop): Equipped with dual emergency stop buttons—located on both the remote control and the machine body—allowing for immediate shutdown in hazardous situations.

3. Intelligent Control Safety

Remote Wireless Control: Enables the operator to maintain a safe distance from the hazardous work zone, thereby avoiding risks associated with cuts, flying debris, and structural collapse.

Automatic Cruise & Load Monitoring: Real-time monitoring of current and torque; automatically reduces speed or shuts down the unit in the event of an overload.

4. Structural & Operational Safety

Secure Guide Rail Locking: The cutting head is firmly locked to the guide rail to prevent accidental shifting or detachment.

Dual-Switch Activation: Requires the simultaneous engagement of two switches to start the machine, preventing accidental activation.

Cooling & Burnout Prevention: Features a water-cooling circulation system combined with temperature monitoring to provide automatic protection against overheating.
