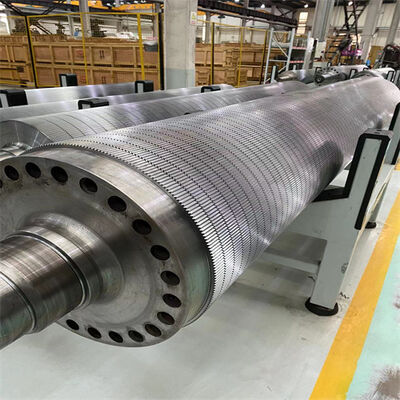

Flute Tungsten Carbide Coating Corrugated Roller High Efficient High Precision Grinding
Flute Corrugated Roller Introduction:
Tungsten carbide Corrugating Roller is uses the most advanced technology in corrugating production line, with highly efficient. How it highly prolonging corrugating roll's lifespan, It combines high precision grinding and carbide-tungsten coating together.
Flute Corrugated Roller Advantages:
- The tungsten carbide corrugating roll is made from 48CrMo alloy steel forgings.
- Undergoing medium frequency quenching, the roll achieves a hardness exceeding HRC60, with a depth of 7mm.
- The roll features an abrasion-resistant tungsten carbide coating, applied using the Praxair JP8000 HVOF system, with a thickness of 50-60 micrometers.
- Compared to chrome-plated corrugating rolls, the tungsten carbide version lasts more than three times longer while costing less than twice as much.
Flute Corrugated Roller Data Sheet:
| Product Name |
Flute Corrugating Rolls |
| Material |
Special 48CrMo alloy steel fine forgings |
| Hardness |
HRC58 |
| Coating Thickness |
0.06 and 0.07mm Tungsten Coating Thickness |
| Surface Plating |
Micro hardness HV900-1250 |
| Combination Hardness |
>75MPa |
| Visible Optical Porosity |
<1% |
| Quenching Layer Depth |
5-7mm |
About us
Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry ,nonwoven fabric industries over 15 years of experience.
Paper Industry: forming roller, vacuum couch roller, dandy roller ,Breast Roller, press roller,stone roller, rubber roller,dryer cylinder ,size press roller, calender roller, pope reel roller ,spreader roller ,embossing roller.
Plastic & Rubber: chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core , coating drum, cooling drum, spreader roller, anilox roller,calender roller, embossing roller .
Nonwoven Fabric :cylinder roller, doffer roller ,carbon fiber guide roller , embossing roller, cooling roller ,spreader roller
With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.
Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road. We pursue:each customer is buying and using HUATAO products with a rest assured heart and service is never end.
