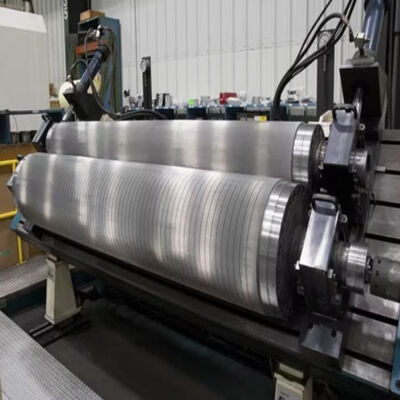

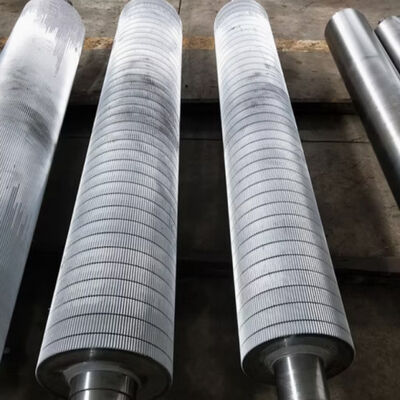

Single Facer Corrugator Roll Peripheral Heating HRC58 Hardness
High Quality Single Facer Corrugator Roll Peripheral Heating
Corrugator Roll Production:
Corrugating roller is the most important part of corrugated board production equipment, and it is also an important key part of single side machine. It is generally made of 48CrMoA steel. After surface heat treatment and cold treatment or surface cold treatment, its hardness is generally above HRC55.
Corrugator Roll Structure:
Corrugated roller is divided into upper and lower corrugated roller. The upper and lower roller surfaces are female. The two rollers are matched and assembled, and their meshing mechanism is different from that of common gear transmission.
The lower corrugated roller is an active roller, and the shaft end is equipped with gear. The motor drives the lower corrugated roller to rotate through the deceleration device. The upper corrugated roller is driven roller, which is driven by the engagement between the upper roller teeth and the lower roller teeth. In order to make corrugated paper form between upper and lower corrugated rollers, a certain pressure must be applied on the upper corrugated roller. So the upper corrugated roller can move along the connecting line direction of the upper and lower corrugated roller axis in addition to rotating around its axis.
This movement is to apply radial pressure to both ends of the upper corrugated roller through cylinder, which causes the meshing corrugated roller to produce the undercut pressure.
Corrugator Roll Specification:
| Product Name |
Corrugating Rolls |
| Material |
Special 48CrMo alloy steel fine forgings |
| Hardness |
HRC58 |
| Coating Thickness |
0.06 and 0.07mm Tungsten Coating Thickness |
| Surface Plating |
Micro hardness HV900-1250 |
| Combination Hardness |
>75MPa |
| Visible Optical Porosity |
<1% |
| Quenching Layer Depth |
5-7mm |
About Huatao Group
Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry, nonwoven fabric industries with over 15 years of experience.
Our Product Range:
- Paper Industry: forming roller, vacuum couch roller, dandy roller, Breast Roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller.
- Plastic & Rubber: chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller.
- Nonwoven Fabric: cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller.
With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries with excellent reputation.
Huatao understands that each customer may have different requirements. We are familiar with domestic factory advantages and can match superior quality products to help customers avoid unnecessary complications. We ensure each customer purchases and uses HUATAO products with confidence, and our service never ends.
